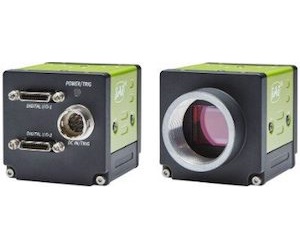

JAI SP-12400M-PMCL | SP-12400C-PMCL
Camera Link Camera
Sony IMX253 Sensor
4112x3008 Resolution
Area Scan Camera

get a quote for this product

JAI Spark Series Industrial Cameras Features

5 to 44.7 megapixels
Frame rates up to 253 fps
Vibration and shock resistance
GigE, Camera Link, USB3, or CoaxPress interface

SP-12400M-PMCL | SP-12400C-PMCL Camera Features

4112x3008 Sony IMX253 1.1 CMOS global shutter sensor
Low noise < 3e-
65 fps at full 12MP resolution
80G/10G shock & vibration rated

SP-12400M-PMCL | SP-12400C-PMCL Datasheet

SP-12400M-PMCL | SP-12400C-PMCL Manual

Sensor Spec
All JAI Cameras

Manufacturer:	JAI	Model:	SP-12400M-PMCL SP-12400C-PMCL	Total Pixels:	12,368,896
Resolution:	4112 (h) 3008 (v)	Sensor Size:	1.1"	Color/B & W:	Color / Monochrome
Frame Rate (fps):	65	Sensor Type:	CMOS	Sensor Device:	Sony IMX253
Pixel Size(µm):	3.45(h) 3.45(v)	A/D Bits:	12	Shutter Speed:	15µs to 8000000µs
Interface:	Camera Link	Voltage(VDC):	12V - 24V	Power(watts):	5.1
Lens Mount:	C	Shutter Type:	Global	Weight(grams):	135
S/N Ratio(dB):	call	External Trigger:	Yes	Dimensions(mm):	54Lx44Wx44H
